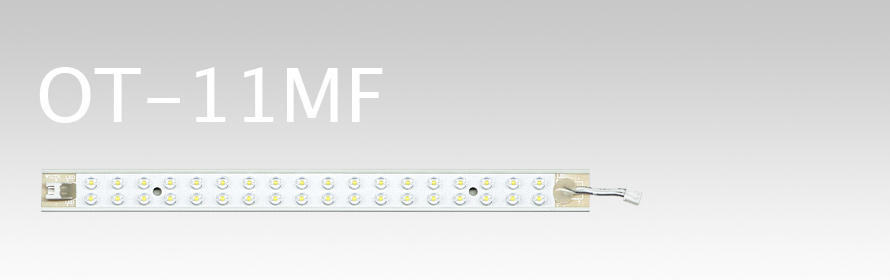

LED Panels OT-11MF
Easy-to-use LED Panel featuring:
Reliable strawhead LEDs for optimum light spread and resistance against humidity
Plastic framing of panel for mechanical and electrostatic protection
White PCB surface for optimum reflection of light
Male-Female connectors for direct panel-to-panel connections. HX25003-2WA connector system: Quick and reliable
3 LEDs per circuit to minimize effect of a single LED failure (e.g. mechanical damage)
ELECTRONICAL SPECIFICATION | ||||
| Parameter | Min. | Typ. | Max. | Unit |
| Rated Voltage: | 11.7 | 12 | 12.3 | V DC |
| Rated Current: | 0.15 | 0.17 | 0.19 | A |
| Rated Power: | 1.8 | 2.0 | 2.5 | W |
| Luminous Flux (Max): | 130 | 150 | 170 | Lm |
| Luminous Flux (Min): | 8 | 7 | 12 | Lm |
| Color Temperature: | 6000 | 7000 | 8000 | K |
| Color Rendering Index: | 75 | 80 | 85 | % |
| Life (at 25°C): | 50000 | H | ||
ELECTRONICAL SPECIFICATION | ||||
| Parameter | Min. | Typ. | Max. | Unit |
| Rated Voltage: | 11.7 | 12 | 12.3 | V DC |
| Rated Current: | 0.22 | 0.24 | 0.26 | A |
| Rated Power: | 2.6 | 2.8 | 3.5 | W |
| Luminous Flux (Max): | 180 | 200 | 220 | Lm |
| Luminous Flux (Min): | 8 | 10 | 12 | Lm |
| Color Temperature: | 6000 | 7000 | 8000 | K |
| Color Rendering Index: | 75 | 80 | 85 | % |
| Life (at 25°C): | 50000 | H | ||
ENVIRONMENT | |
| Operating Temperature: | -25 To 50°C (from -40°C in permanent use) |
| Storage Temperature: | -35 To 85°C |
| Relative Humidity: | > 90% RH |
MECHANICAL SPECIFICATION | |
| Execution: | Internal |
| Dimensions | (L x W x H): 240x19.2x11.3mm |
| Weight (Approx.): | 30g |
| Input Terminal: | XH-2AWD, White |
| Output Terminal: | TJC3-2Y, White |
PACKING | |
| Inner Package: | Zip-lock Bag, 2PCS/Bag |
| Shipping Carton: | 510x320x180mm |
| QTY.: | 192PCS/CTN |
| N.W.: | 5.4KG/CTN |
| G.W.: | 6.4KG/CTN |
